Product Description

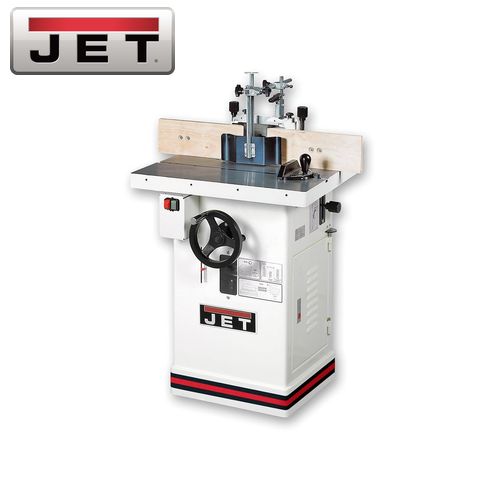

Jet JWS-34KX – professional milling machine with a powerful engine (especially in 3-phase version) and a massive cast-iron work table. The design with replaceable spindle allows to considerably expand a spectrum of solved problems. The 30 mm spindle included in the equipment corresponds to the standards of most modern manufacturers of cutting tools, and 32 mm (sold separately) – to the domestic one. Instead of a spindle, it is possible to install collet clamps for operation with end mills. A unique feature of JWS-34KX is the ability to perform some grinding operations: as an option, a spindle with a set of bushings for abrasive sleeves with a diameter of 25 to 100 mm is available, they are used mainly for finishing edges.

The machine is equipped with an accurate milling stop. Its massive cast-iron body is combined with the fence of the cutter and a 100-mm branch pipe of the dust extractor. For adjustment, move it entirely, and after adjust the protrusion of the rear (receiving) lining using a precise screw mechanism with a millimeter scale. For milling at an angle, the stop is designed with a transport scale (included in the standard equipment) or a small movable cast-iron table (optional), equipped with a work clamp and a conveying stop. Both devices move along the T-slot in the working table.

Features:

• Replaceable milling spindle
• The possibility of installing a collet clamp
• Ability to install a grinding bushing
• Adjusting the spindle mounting height with a rotating flywheel
• Millimeter scale for spindle mounting height control
• 4-speed adjustment of the spindle speed by reinstalling the belt
• Fast belt tension / loosening lever
• Inspection window for monitoring the position of the belt
• Working table made of cast iron
• Adjustable milling stop with fine adjustment knob
• The movable corner stop with the guide along the T-shaped groove and with the angular marking
