Wolfcraft Angular Bevel Gauge with Marking Gauge Function | 6958000
Wolfcraft Angular Bevel Gauge with Marking Gauge Function | 6958000
R409.00 Incl. VAT
The Wolfcraft Angular Bevel Gauge with Marking Gauge Function is an essential tool for accurately measuring and transferring angles, making it ideal for flooring installation and furniture construction.
Out of stock. Learn more.
Product Description

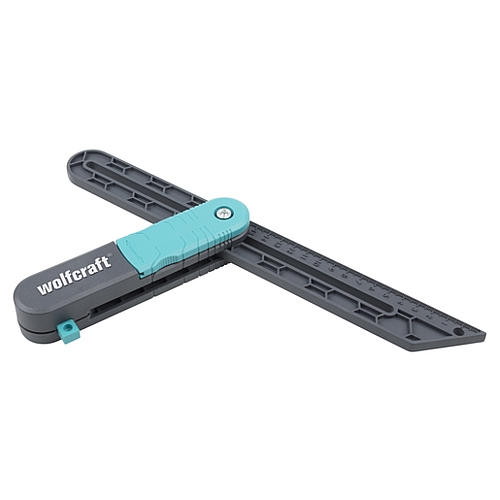

Wolfcraft Angular Bevel Gauge with Marking Gauge Function.

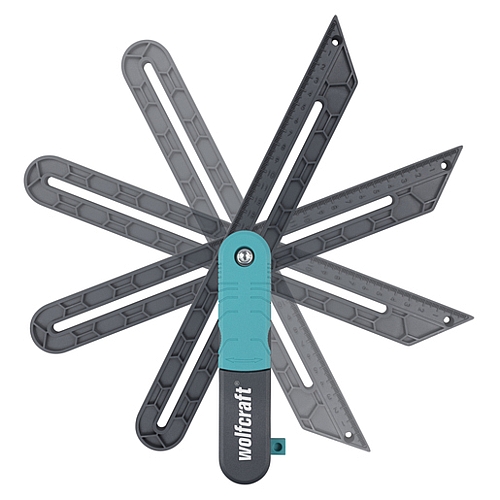

The Wolfcraft Angular Bevel Gauge with Marking Gauge Function is a practical solution for precise angle measurement and transfer. Whether laying floors or building furniture, this tool ensures efficiency and accuracy.

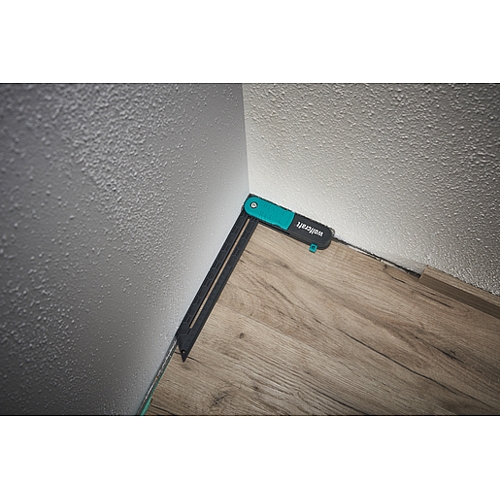

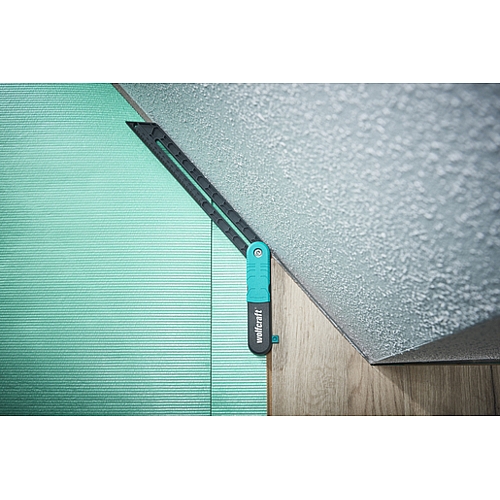

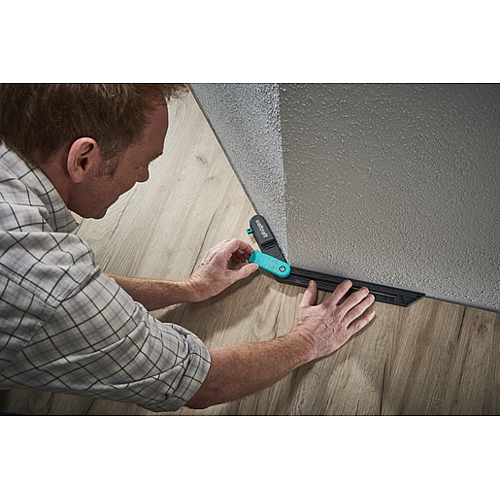

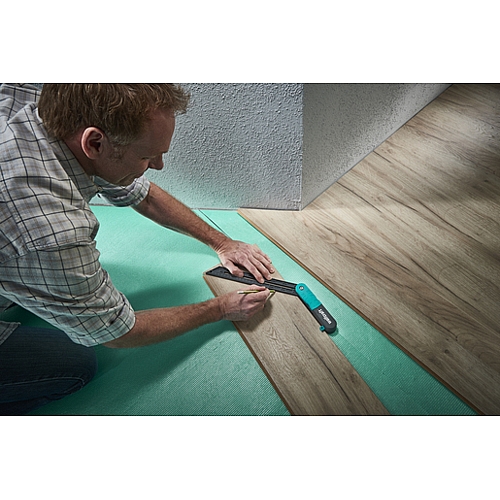

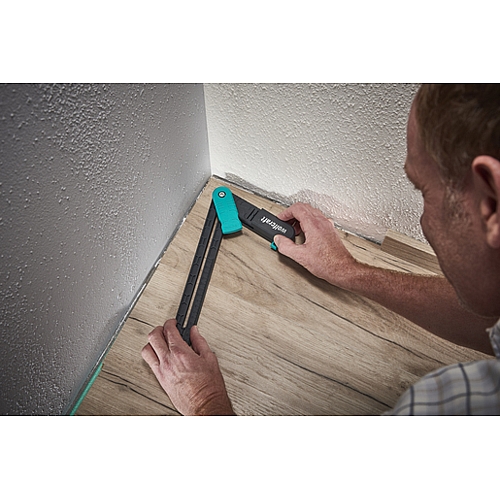

To use, simply push the two plastic legs into the corner of a wall and align them with the surfaces. Once positioned, the locking lever secures the measured angle with a one-handed operation, even in confined spaces. After locking the angle, the gauge can be transferred directly to a workpiece for accurate marking.

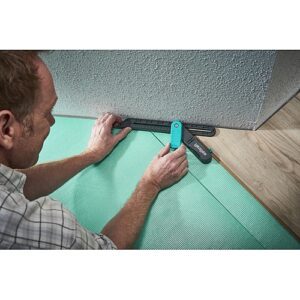

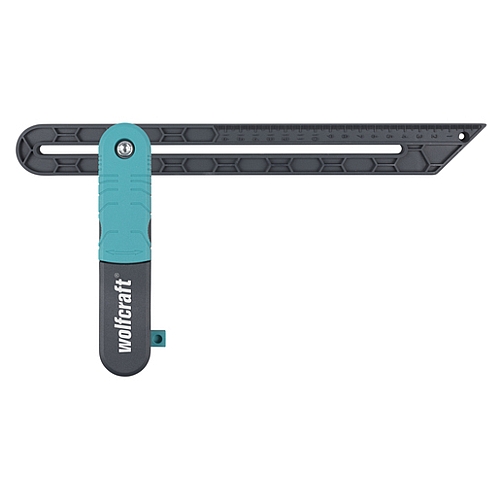

Additionally, this bevel gauge functions as a marking gauge, making it easy to mark parallel lines. The moving leg features a scale for precise measurements, while the integrated guide hole allows a pencil to be inserted for consistent marking. The folding stop provides added stability when marking angles or lines.
Manufactured in Europe, this high-quality tool is designed for durability and professional use.
Features & Benefits:
- Dual functionality: Measures and transfers angles while also serving as a marking gauge.

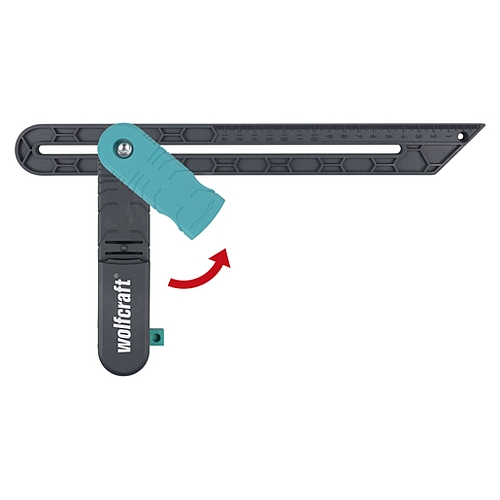

- One-handed operation: Locking lever can be used from both sides, even in tight spaces.
- Precise markings: Scale on the moving leg allows for easy marking of parallel lines.
- Pencil guide hole: Ensures consistent and accurate line marking.
- Folding stop: Helps position the gauge firmly on the workpiece for added accuracy.
- High-quality construction: Made in Europe for durability and precision.
Specifications:
Leg dimensions: 32 cm long x 3.5 cm wide
Stop dimensions: 16.5 cm long x 3.5 cm wide
Product length (folded): 36 cm
Scope of Delivery:
- 1 x Wolfcraft Angular Bevel Gauge with Marking Gauge Function
Technical Data:
Working height: 865 mm
Max. span / with clamping jaws: 120 / 620 mm
Bench top: 780 x 500 mm
Max. loading: 200 kg
Work top: MDF, die-cast aluminium
For circular hand saws: with riving knife: up to a maximum cutting depth of 70 mm, saw blade diameter of 200 mm and the specified maximum base plate dimensions (see pictogram). Must only be used with appropriate split insert!
For jigsaws: all
For routers: with max. 230 V, max. 1800 W, maximum machine plate diameter: 170 mm; maximum machine plate height: 20 mm; for maximum router diameters of 27 mm
Cutting width: max. 390 mm
Angled cuts: 0 – 180°
Dimensions of MDF panel: 495 x 500 x 23 mm
Dimensions of machine plate: 285 x 500 mm
Dimensions mounted: 940 – 640 x 865 mm
Dimensions folded: 640 x 1,145 x 195 mm
Weight: 17 kg
*By using riving knife accessory Art. No. 6903000 (up to 160 mm) or Art. No. 6904000 (160 – 200 mm), circular hand saws can also be used without a riving knife.
Complete With:
- 1 angle stop
- 1 parallel stop
- 1 safety switch
- 1 push stick
- 1 switch clamp
- 1 safety shield
- 4 plastic jaws for securing the workpiece horizontally
- 2 insert rings 15 and 25 mm for routers
