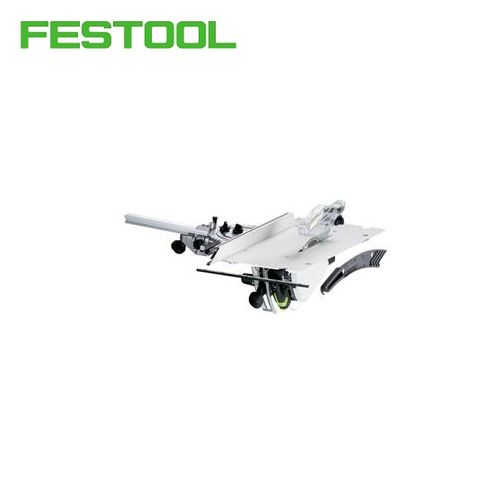

MODULE CMS-MOD-TS 55 R (570282)
MODULE CMS-MOD-TS 55 R (570282)
Incl. VAT
Product Description
The module for the CMS system.
FastFix for quick and easy saw blade changes and adaptation to the working material
Bench saw for a wide range of applications
Circular saws can be installed or used portably
Extendable thanks to extensive range of accessories
Main areas of use:
- Sliding table for precise trim cuts and cross cuts up to 830 mm in length
- Quick changeovers between cross-cutting and rip-cutting
- Angled cuts from -1° to 47° due to inclined position of the saw blade
- MMC electronics and variable speed control allow you to machine a wide range of materials
Power consumption: 1200 W
Idle engine speed: 2000-5200 min⁻¹
Saw blade diameter: 160 mm
Cutting height 90°/45°: 0 – 51/0 – 38 mm
connection Ø d/e: 27/36 mm
Dimensions module support: 578 x 320 mm
Weight module support: 3,3 kg
weight: 7,8 kg
Items Included:
- circular saw TS 55 REBQ-PLUS
- module support
- protective cover with supporter
- fixing clamps
- cutting depth adjustment
- clamp for switching terminal
- scales
- workpiece holder
- angle stop
- fine tooth saw blade HW W48
- Opertation Tool
