The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
Product Description
Festool DF 500 Q-Set DOMINO Joining Machine + Domino Accessory Systainer | FESKIT-DF500.

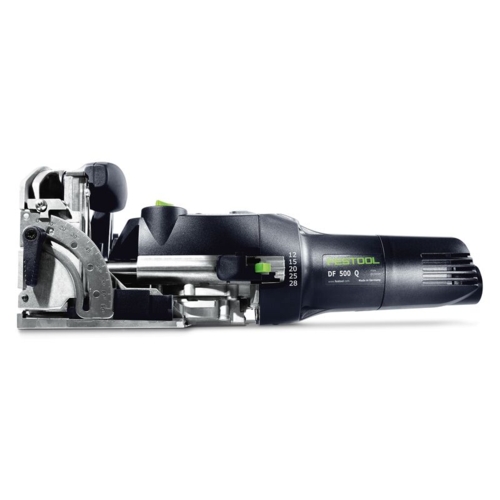

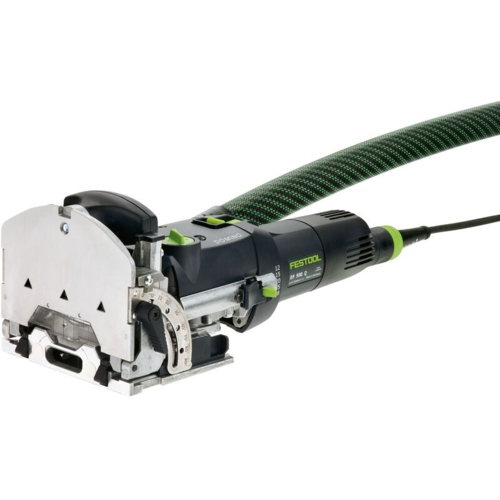

1 x Festool DF 500 Q-Set DOMINO Joining Machine | 576420.
More precise joints.

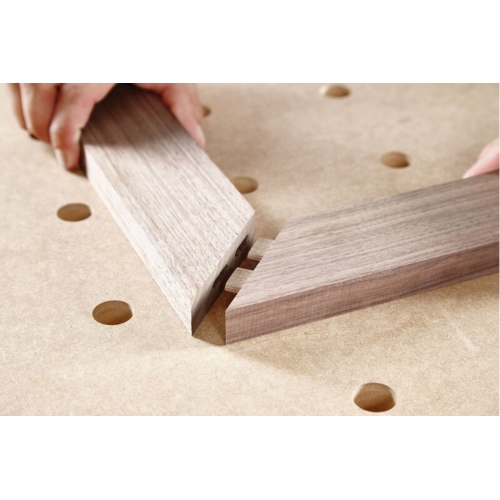

Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Rotation-proof joint with DOMINO dowels providing maximum stability
- System accessories compatible with both DOMINO jointers
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Main applications:
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction

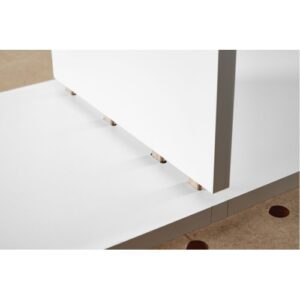

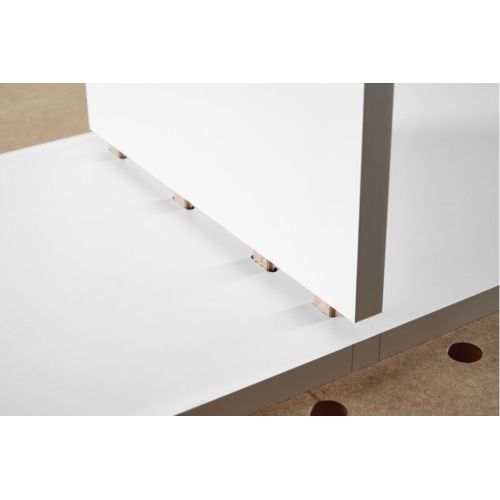

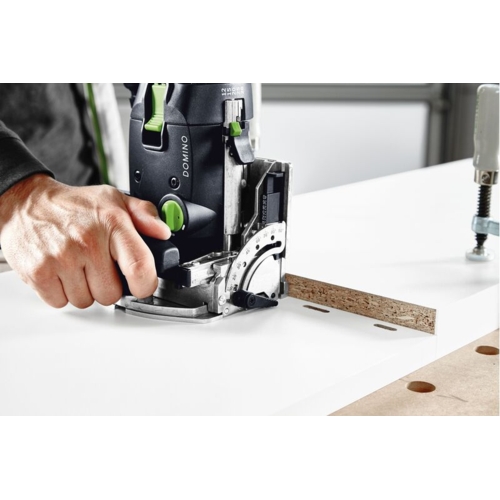

- For panel joins

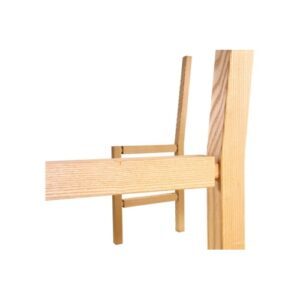

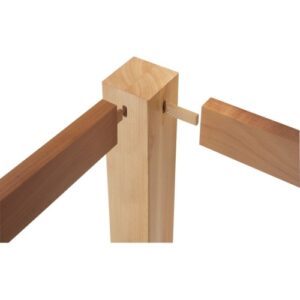

- For frame and rack joints
Product highlights:

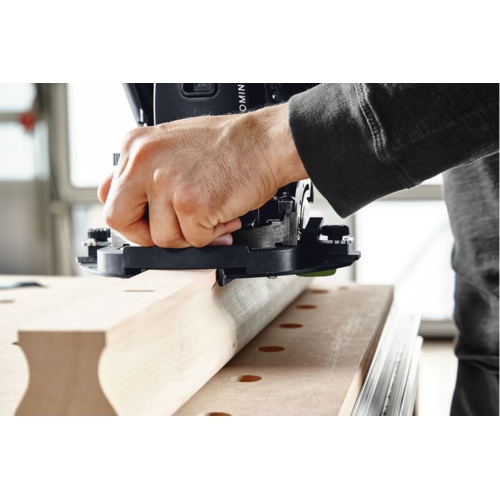

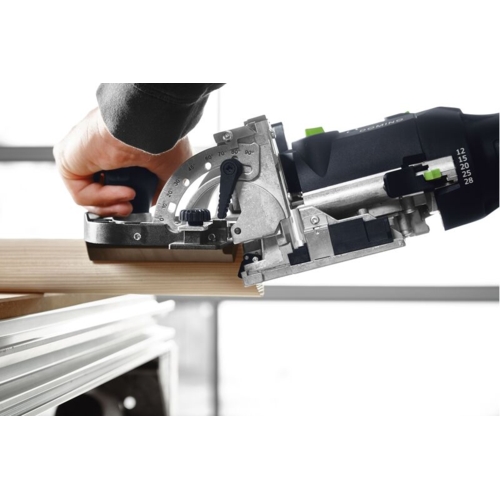

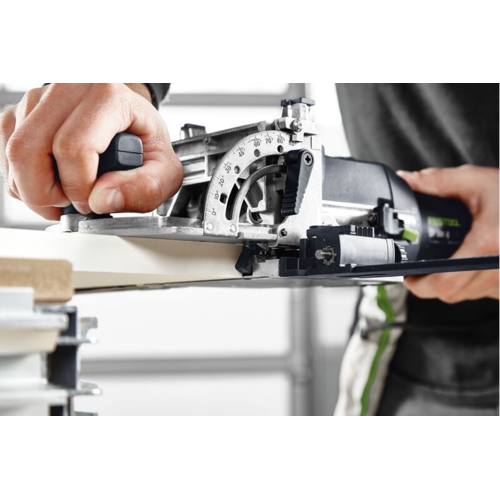

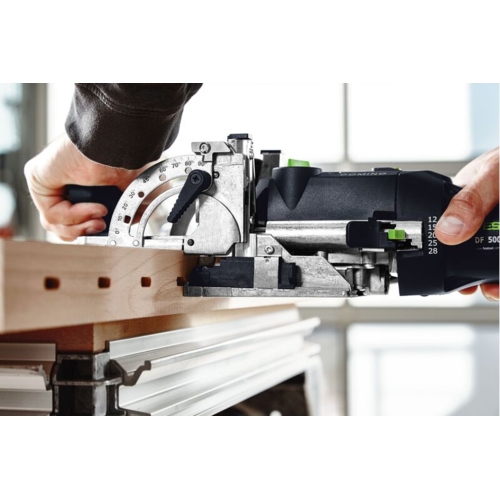

- Achieve ideal results more quickly: Positioned in next to no time with the innovative stop cap system. The routing height and depth can be adjusted in seconds using the preselection slider.
- Convenient and safe: Unique patented pendulum routing principle enables smooth, accurate work as well as holes without any scorch marks.
- Systems get it done: DOMINO, cutter, dowel up to 10 x 50 mm, flexible adjustment options and compatible system accessories for virtually unlimited jointing possibilities.
Other versions – DF 500 Q:
DF 500 Q-Plus DOMINO Joining machine (574325)
Technical data:
Max. routing depth: 28,00 mm
DOMINO slot cutter dia.: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5 – 30 mm

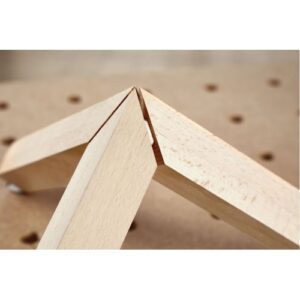

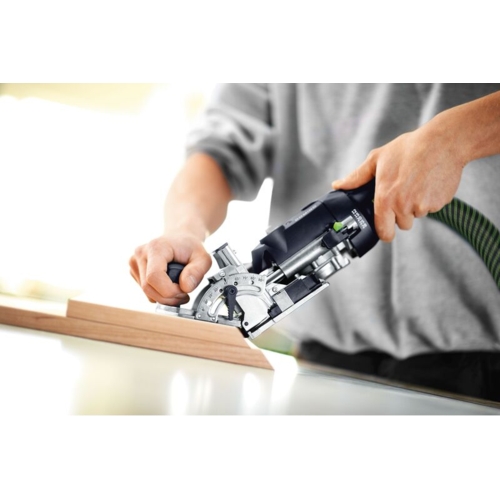

Mitre routing: 0 – 90 °
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Idle engine speed: 25 500 min⁻¹
Power consumption: 420 W
Weight: 3.2 kg
Dust extraction connection dia.: 27 mm
Noise and vibration values:
Routing: Total vibration average, Ah: 3,00 m/s²
Routing: A-weighted sound power level, LWA: 95,00 dB(A)
Routing: Uncertainty (noise) K: 3,00 dB
Routing: Uncertainty (vibration) K: 15,00 m/s²
Routing: A-weighted sound pressure level, LpA: 84,00 dB(A)

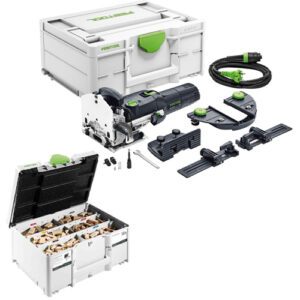

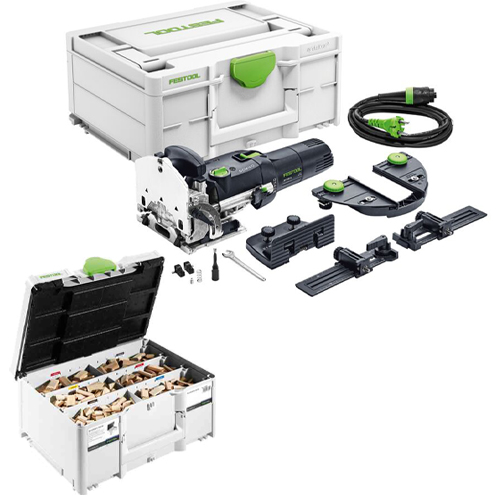

Items included – DF 500 Q-Set:

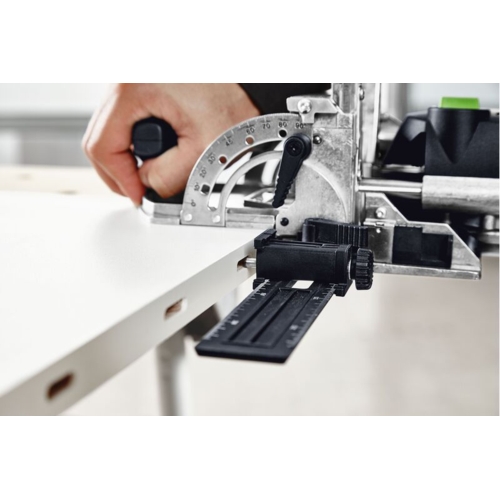

- Additional Stop
- Cross Stop
- DOMINO Cutter D5
- Open Ended Spanner, WAF 8
- Plug-It-Power Cable (4 m)
- Systainer SYS3 M 187
- Trim Stop
Downloads:
DF 500 Operating Manual
DF 500 Safety Instruction
D8 Connector Application
1 x Festool Domino Beech Range DS 4/5/6/8/10 1060X BU | 576794.
Steady. Steadier. DOMINO.

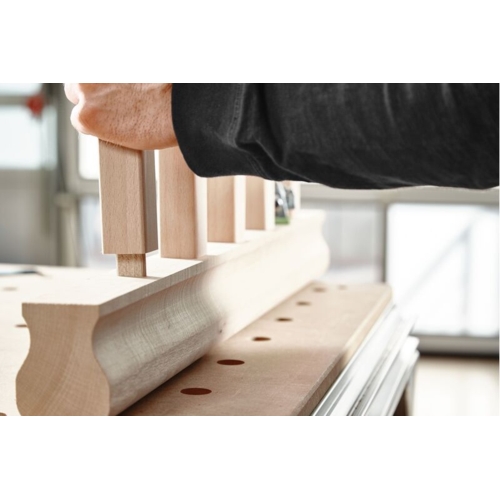

The special shape in combination with expanding glue pockets and longitudinal grooves gives the dowels a secure grip. For absolutely twist-proof connections and maximum stability. Added to this is significantly faster processing: The first dowel hole is aligned with extreme ease and routed accurately using flip stops. It immediately secures the workpieces that are to be joined so that they are exact and flush with the edge. The DOMINO system even tolerates smaller imprecisions in the other dowel holes.
- All DOMINO dowels quickly at hand due to tidy storage in the Systainer
- Get started immediately, as the required routers are included in the set
- The cross cut of a DOMINO dowel corresponds to that of three round dowels of the same drill diameter, meaning that it is extremely steady in comparison
- The laterally projecting guide ribs centre the dowel in the middle of the DOMINO milling groove and thus ensure perfect alignment of workpieces
- Specially formed glue pockets and longitudinal grooves distribute the glue evenly, for optimal joining
- Excessive glue can escape through the lateral longitudinal grooves
- 100% rotation-proof right from the first DOMINO
- Quick finding of the right dowel through imprinted size specifications
- all DOMINO dowels quickly at hand and cleanly packed in the Systainer³
Product details:

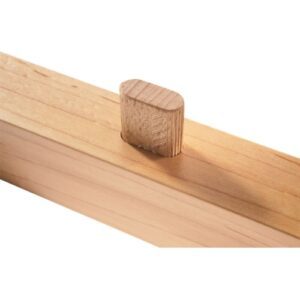

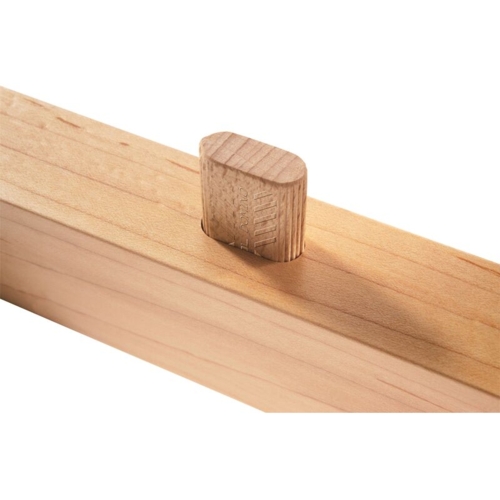

- Not flat. Not round. DOMINO! DOMINOs combine all the advantages of round and flat dowels. Thanks to their unique shape, they are extremely stable and secured against rotation right from the first dowel.
- For inside and out. DOMINOs are available in two materials: Beech for interior applications and weatherproof, insect- and mould-resistant sipo DOMINOs for outdoor applications.
- 100% rotation-proof. Right from ,the first DOMINO the joints are completely secured against rotation – without aligning the workpieces.

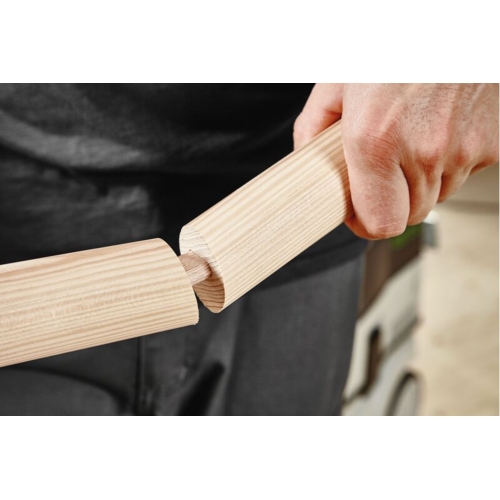

- Overview of dowel sizes. The right dowel for every application: With different sizes from 4 x 20 mm up to 14 x 140 mm and individually adjustable rods.
- The right dowel for every DOMINO machine. With the DOMINO DF 500 joining machine, you use dowels from 4 x 20 mm to 10 x 50 mm in size. For the DOMINO XL DF 700, you can use dowels from 8 x 40 mm up to 14 x 140 mm in size and the corner and flat connectors.
- Maximum stability. The special shape of the DOMINO in combination with expanding glue pockets and lateral longitudinal grooves gives the dowels a secure grip.
- A perfect fit. The DOMINO DF 500 jointers precisely adjust the holes to the respective dowels. The special grooving geometry of the dowels enables accuracy and a perfect fit.
- Environmentally friendly. All DOMINOs originate from sustainable forest management. The beech dowels are certified by the Pan European Forest Council (PEFC).
- Now extremely flexible, too. The new DOMINO corner and flat connectors: Connect even quicker and release it again as necessary.
Main applications:

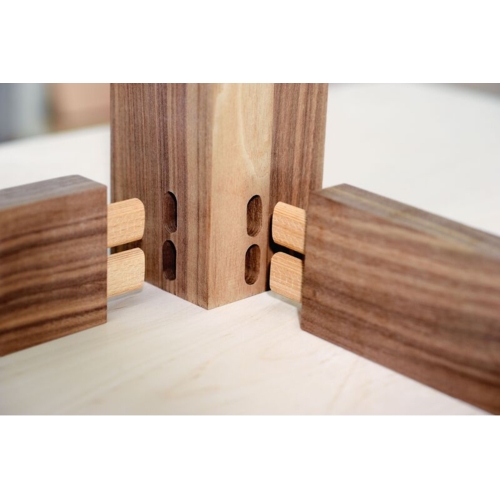

- Steady joints in solid wood and panel material
- Furniture fitting, trade fair construction and shopfitting

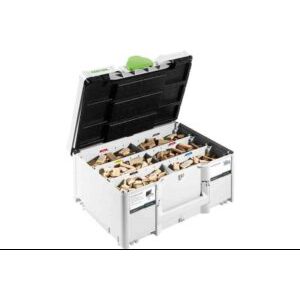

Items included:
- DOMINO tenon assortment 4 x 20 mm (450 pieces),
- 5 x 30 mm (225 pieces), 6 x 40 mm (150 pieces),
- 8 x 40 mm (100 pieces), 8 x 50 mm (75 pieces),
- 10 x 50 mm (60 pieces)
- DOMINO router for sizes 4, 5, 6, 8 and 10
- 0Systainer SYS3 M 187
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
