Product Description

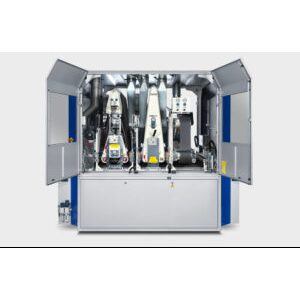

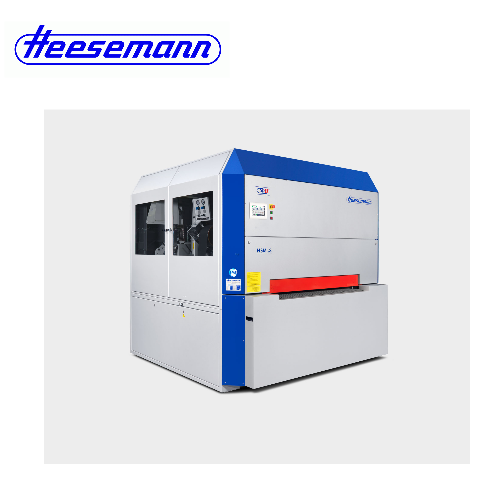

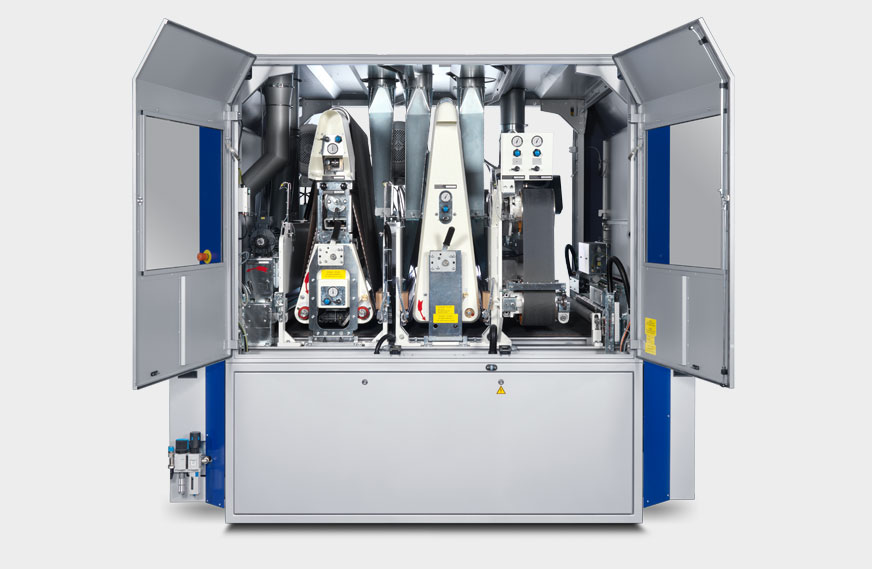

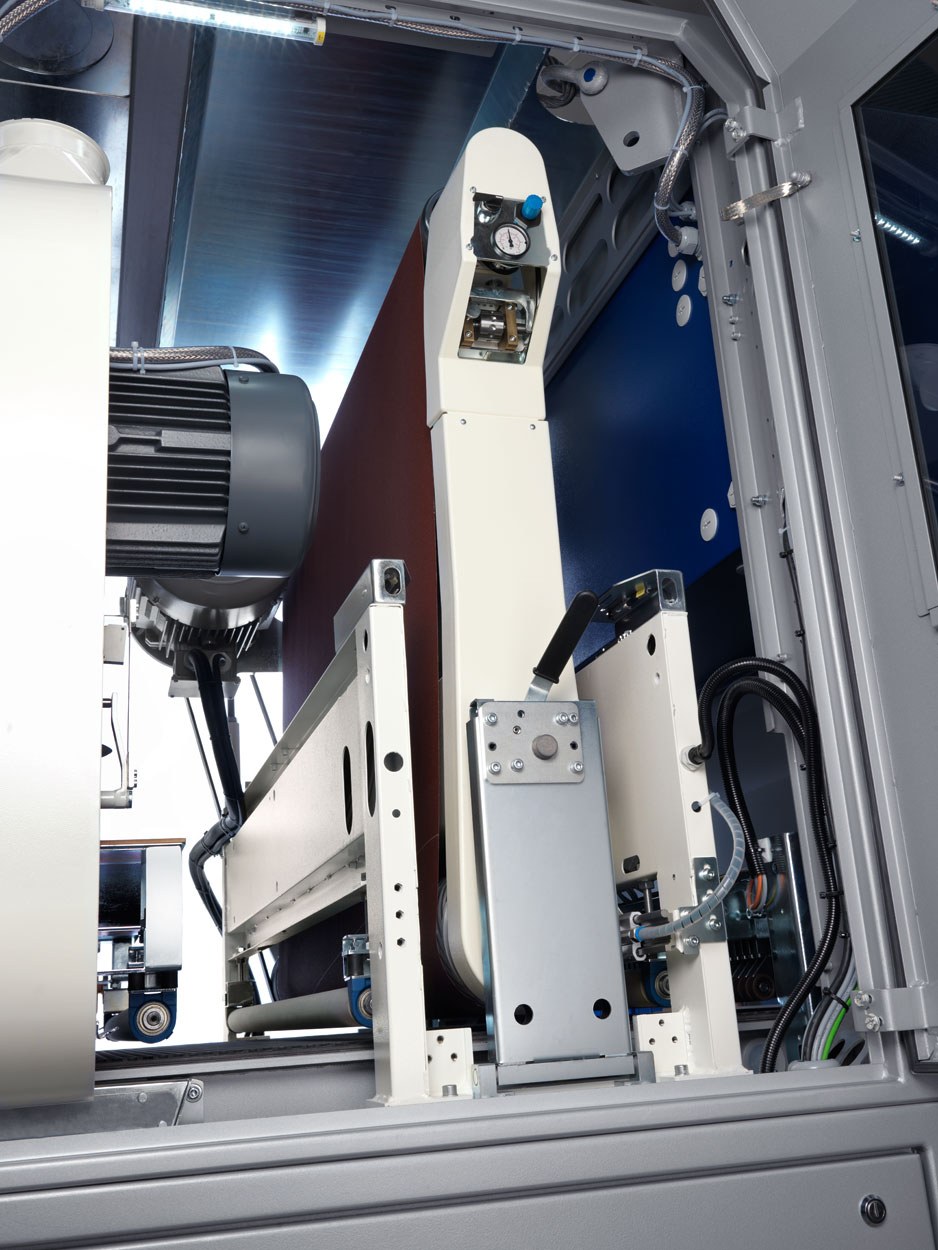

The Heesemann MFA Impression offers proved industrial machines technology for craftsmen, interior fitting and industry in a compact execution and at an attractive price. A compact, rigidly structured machine design can take up to 4 calibration, cross and longitudinal sanding units and disk brush units (RUT) as well as additional brush units. As with industrial machines you are free to choose the belt access and operator side. Impression thus provides a machine solution for every conceivable application. The result is a perfect sanding result.

Download Brochure

Contact roller	Cross unit	Longitudinal unit	Longitudinal unit with pressure segment belt
(Sanding belt) Dimensions	2.150 x 1.400 mm 2.620 x 1.400 mm	4.800 x 150 mm 5.400 x 150 mm	2.150 x 1.400 mm 2.620 x 1.400 mm	2.620 x 1.400 mm
Drive performance	22 kW 30 kW	15 kW 19 kW	15 kW 16 kW	15 kW 19 kW
Belt speed	24 m/s 24 m/s	2,0 – 20 m/s 0,1 – 20 m/s	1,8 – 18 m/s 0,1 – 18 m/s	1,6 – 16 m/s 0,1 – 16 m/s
Extraction volume	30,5 m³/min	24 m³/min	24 m³/min	24 m³/min
Extraction connection	Ø 180 mm	Ø 160 mm	Ø 160 mm	Ø 160 mm
Air velocity	20 m/s	20 m/s	20 m/s	20 m/s

	Disk brush unit	Strukturing brush	Cleaning brush
Drive performance	Brush rotation: 7,5 kW inverter Brush movement: 1,5 kW inverter	11 kW 15 kW	0,75 kW 1,50 kW 4,00 kW
Extraction volume		18,0 m³/min
Extraction connection	2 x Ø 160 mm	Ø 140 mm	18,0 m³/min
Air velocity	20 m/s	20 m/s	Ø 140 mm

Machine Data	Dimensions (L x W x H)	Weight	Feed speed	Suction volume
1 Unit	2.700 x 2.300 x 2.250 mm	3.500 kg	3 – 15 m/min	11 m³/min
2 Units	2.700 x 2.300 x 2.250 mm	4.000 kg	3 – 15 m/min	25 m³/min
3 Units	3.200 x 2.300 x 2.250 mm	5.000 kg	3 – 15 m/min	25 m³/min
4 Units	3.700 x 2.300 x 2.250 mm	7.000 kg	3 – 15 m/min	40 m³/min
