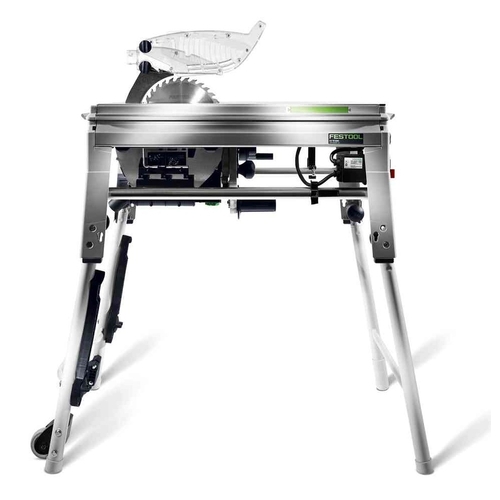

Festool PRECISIO CS 70 EBG-Set Trimming Saw | 574782

Festool PRECISIO CS 70 EBG-Set Trimming Saw | 574782

Incl. VAT

SKU: FES574782 Category: Table Saws

Product Description

Festool PRECISIO CS 70 EBG-Set Trimming Saw | 574782.

Solid, strong and uncompromising.

Cross or rip cuts. Mobile or stationary. Interior fitting, furniture-making or exhibition construction. One solution for a variety of tasks: The PRECISIO CS 70 with a low weight and ingenious functions can saw workpieces with a material thickness of up to 70 mm. And with the comprehensive range of system accessories, the CS 70 can be converted into a fully fledged sawing station.

2100 watt universal motor for powerful cutting
70 mm cutting depth for an even wider range of applications
Change quickly from rip to cross cuts with the angle stop
Moving splinterguard for splinter-free cuts on both sides
Clearly laid out, well-positioned control elements
Surrounding V groove for locating angle stops

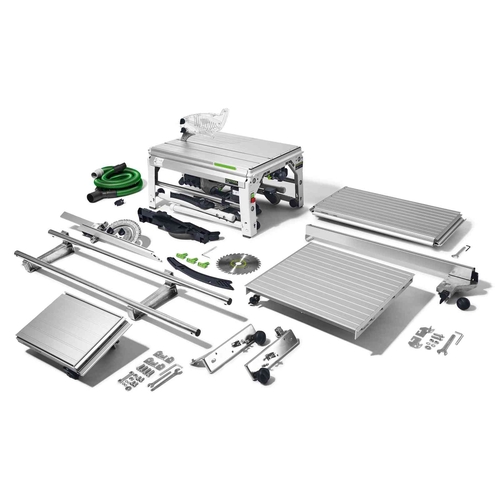

Can be upgraded to a sawing station by adding an extensive range of accessories

Product highlights.

Achieve ideal results more quickly – 2100 watts for maximum cutting performance, even with harder materials. Can be quickly converted from rip cuts to cross cuts thanks to the angle stop.
Convenient and safe: – Variable work up to a cutting depth of 70 mm and splinter-free sawing on both sides thanks to integrated splinter guard.
Systems get it done – Attachment system for even wider, longer and larger work. Extraction option for a dust-free, healthy working environment.

Product details.

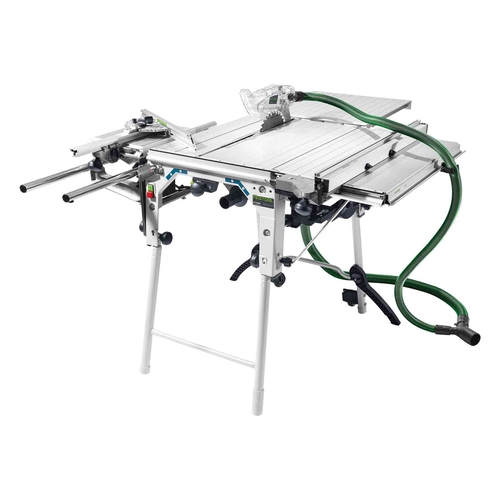

Mobile or stationary – Comprehensive system accessories allow you to upgrade the CS 70 to a complete sawing station with minimal effort, enabling you to make cross cuts on materials that exceed standard dimensions.

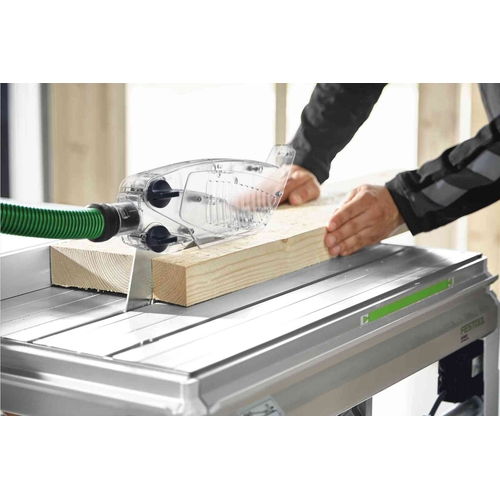

Splinter-free cuts on both sides – The integrated splinter guard guarantees high-quality results, with splinter-free cuts on both sides.

Simple saw blade replacement – The simple saw blade replacement enables the work to be adapted to the material. The right blade can be set up in next to no time.

Extremely robust – Thanks to the encapsulated motor, the CS 70 is protected against dust and dirt on the construction site or in the workshop. The air filter prevents aluminium chips, for example, from getting into the motor and damaging it.

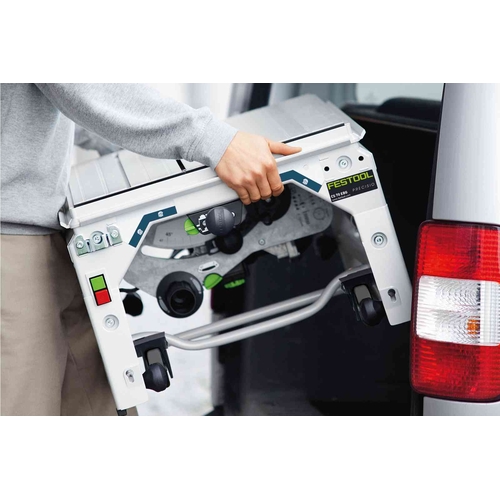

Easy to transport – Despite its size, the CS 70 is easy to transport and can be set up in an instant thanks to its foldaway legs and low weight. Changing the working height is easy too.

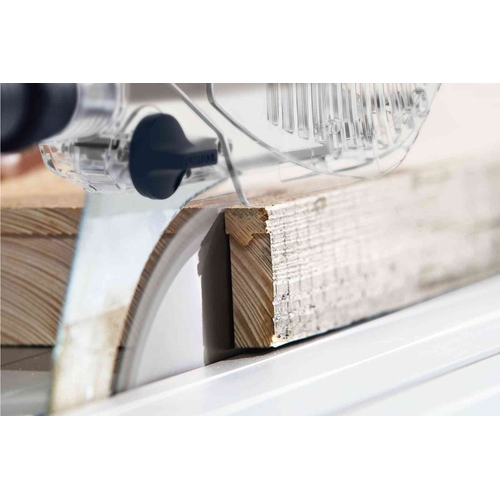

Hidden cuts – The spacer wedge can be lowered. Advantage: Hidden cuts, grooves and rebates without having to remove the spacer wedge.

For particularly wide cuts – The CS 70 has a cutting path of 320 mm, enabling cross cuts up to 650 mm and rip cuts up to 680 mm wide with the right accessories.

Fast changeover from cross to rip cuts – The CS 70 can be converted from the cross-cut to the rip-cut position in no time at all. Simply insert the angle stop into the V-groove provided, tighten, and you’re done.

High performance – The 2100-watt motor provides traction and optimum cutting performance, even when working with harder materials. It is even possible to make longitudinal cuts in solid wood.

The holder for accessories – Push stick, guard and preset profile setting rail can be securely stowed in the accessory holder directly on the saw to save space. This means that the system accessories are neatly stowed and always to hand.

Simply mobile. Simply stable – The integrated transport rollers enable the machine to be moved easily. The tilt protection with collapsible support lends the saw additional stability.

Main applications:

Draw the saw blade for quick, precise cross cuts up to 320 mm wide
Cross cuts up to 226 mm wide at 45°
Rip cuts up to a depth of 70 mm
Tilting saw blade for angled cuts between -2° and 47°
Retractable spacer wedge for hidden cuts – removal not necessary

Performance Features:

MMC Multi Material Control electronics – “Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.

Splinter guard – Patented splinterguard for splinter-free cuts on both sides when sawing.

FastFix – Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

CLEANTEC – Standard connection (27/36/50 mm) for dust extraction, protects the operator and the environment.

Quick-acting brake – For safe work when planing, sawing and routing.

Groove in saw table – lever clamps on the saw table fix the workpiece securely and prevent it from shifting accidentally

Technical Data:

Power consumption: 2 100 W
Idle engine speed: 2 000 – 4 200 min⁻¹
Saw blade diameter: 225.00 mm
Cutting height 90°/45°: 0 – 70/0 – 48 mm
Inclination: 0 (-2)° – 45 ( 47) °
Cutting path: 320.00 mm
Table dimensions: 690 x 500 mm
Table height, legs folded away: 375.00 mm
Table height, legs unfolded: 900.00 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4.00 m
Product weight: 37.00 kg
Drive type: Mains

Noise & Vibration Values:

Idle state: A-weighted sound power level, LWA: 91.00 dB(A)
Idle state: Standards series EN: 61029-2-1
Idle state: Uncertainty (vibration) K: 1.50 m/s²
Idle state: A-weighted sound pressure level, LpA: 78.00 dB(A)
Idle state: Total vibration average, Ah: 2.50 m/s²
Idle state: Uncertainty (noise) K: 3.00 dB
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: 61029-2-1
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 103.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 90.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
