Product Description

Festool PF 1200 E-Plus Alucobond Aluminium Composite Milling Machine | 574321.

The professional solution for aluminium composite panels.

Grooves. Edges. Done. Specially developed for edging aluminium composite panels with speed and precision. In combination with the guide rail, the PF 1200 aluminium composite milling machine is ideal for mobile exhibition and façade construction applications. The feeler roller ensures precise routing depths. The router can only plunge into the material as far as the feeler roller allows.

Strengths and benefits:

• Removable feeder roller for different material thicknesses
• Low weight for easy transportation and mobile applications
• Guide slot for guide rail
• Blade cutter for rapid progress and effortless precision routing
• Robust, wear-resistant design for long service life

Main areas of use:

• Fashioning 90° and 135° grooves
• Milling aluminium composite panels
• Mobile use – also with guide rail

Technical Data:

Drive type: Mains
Power consumption: 1200 watt
Idle engine speed: 1900 – 5200 RPM
Routing depth: 0 – 9 mm
Max. cutter diameter: 118 mm
Dust extraction connection dia.: 27/36 mm
Weight: 5.9 kg

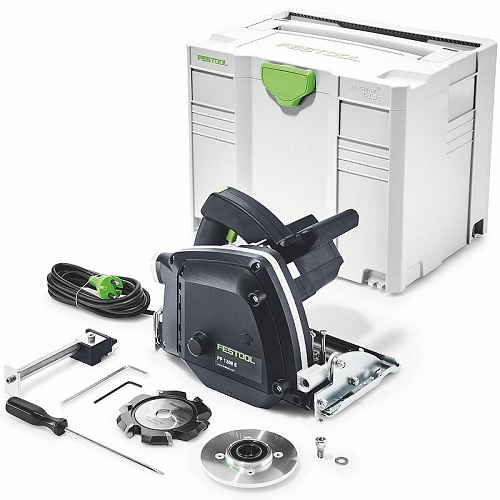

Items included:

• V-grooving bit
• A4 feeler roller
• setting gauge for guide rails
• without guide rails
• screwdriver
• WAF 3,
• SYS 4 TL Systainer, in carton
