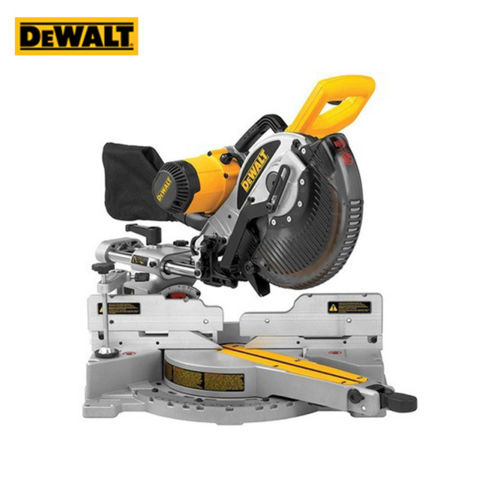

Description

FEATURES

• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 60° left and 0° – 50° right
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles. This provides maximum stability and accuracy.
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 320 mm wide
• Quick release bevel setting provides accurate and simple setting of bevel angles up to 48° left and right
• Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity

STANDARD

• TCT tooth blade
• Blade spanner
• Dust bag
• Material Clamp

SPECIFICATIONS

• Power Input:1675 Watts
• Power Output:750 Watt
• Blade Speed:4000 rpm
• Blade Diameter:250 mm
• Blade Bore:30 mm
• Bevel Capacity:48/48 °
• Mitre Capacity [right/left]:50/60 °
• Cutting Capacity at 90°/45° (W x H):302×58 mm
• Cutting Capacity at 90°/90° (W x H):302×88 mm
• Cutting Capacity at 90°/90° (W x H):320×76 mm
• Cutting Capacity at 45°/90° (W x H):213×88 mm
• Cutting Capacity at 45°/90° (W x H):226×76 mm
• Cutting Capacity at 90°/45° (W x H):320×50 mm
• Max. Cutting Capacity at 45°/45°:226×50 mm
• Max. Depth of Cut [Saws]:152 mm
• Weight:23 kg
• Depth:541 mm
• Length:718 mm
• Height:442 mm
• Hand/Arm Vibration – Cutting Wood:2.3 m/s²
• Uncertainty K 1 (Vibration):1.5 m/s²
• Sound Power:99 dB(A)
• Sound Power Uncertainty:3 dB(A)
• Sound Pressure:91 dB(A)
• Sound Pressure Uncertainty:3 dB(A)
