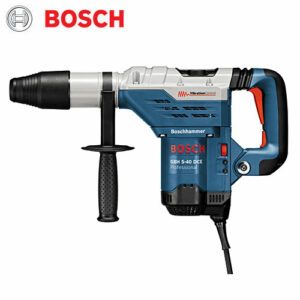

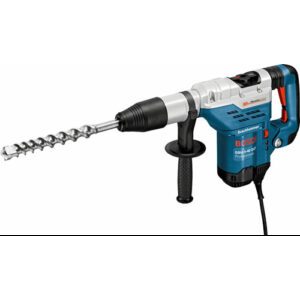

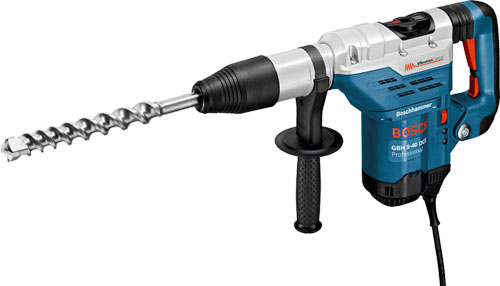

Bosch GBH 5-40 DCE Professional Rotary Hammer W/SDS-Max 1150W

Bosch GBH 5-40 DCE Professional Rotary Hammer W/SDS-Max 1150W

Incl. VAT

SKU: 611264000 Category:

Product Description

The fast all-rounder with Vibration Control

  • Fast drilling rate due to 1150 W motor and powerful impact mechanism
  • Vibration Control ensures more comfortable working, even in time-intensive applications
  • Setting wheel for variable adjustment of the speed and impact rate for optimum performance
  • Automatic switch lock for the best convenience in continuous chiselling applications
  • Constant Electronic, service display and standby display for maximum convenience
  • Ball grommet for high movement radius and for preventing cable breaks

Features:

  • Automatic switch lock for the best convenience in continuous chiselling applications
  • Constant Electronic, service display and standby display for maximum convenience
  • Ball grommet for high movement radius and for preventing cable breaks
  • Fast drilling rate due to 1150 W motor and powerful impact mechanism
  • Vibration Control ensures more comfortable working, even in time-intensive applications
  • Setting wheel for variable adjustment of the speed and impact rate for optimum performance

Comfortable working.
thanks to low vibration by adding rubber mounting/foam padding to the handles

comfortable-working-5795

Protection of the user and the machine in case of overload or binding.
No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque

protection-of-the-user-and-the-machine-in-case-of-overload-or-binding-101194

Best work results with constant speed.
thanks to electronic regulation of speed – even under load

best-work-results-with-constant-speed-92608

Turbo Power.
More power for faster working

turbo-power-5794

Optimal power transmission.
for large hammers

optimal-power-transmission-15795

Heavy Duty.
We deliver unmatched endurance coupled with reliability and class-leading performance. All Bosch products are powered by innovation and technology engineered to outlast

heavy-duty-131059

Best work results with speed pre-selection.
for applications requiring material-specific speed

best-work-results-with-speed-pre-selection-101201

Technical Data:

Rated power input: 1150 W
Impact rate at rated speed: 1500 – 3050 bpm
Rated speed: 170 – 340 rpm
Weight without cable: 6.8 kg

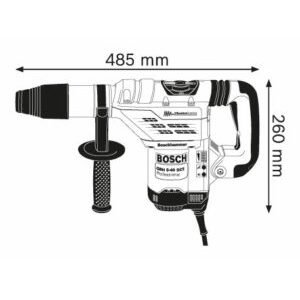

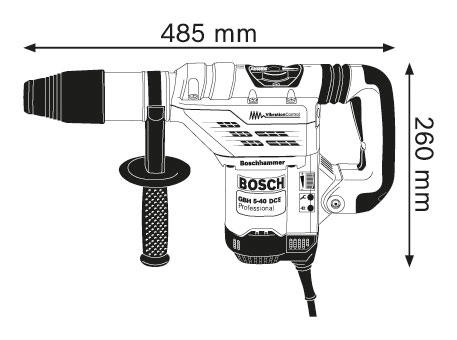

Length: 485 mm
Height: 260 mm
Toolholder: SDS-max


Drilling range:

Drilling dia. concrete, hammer drill bits: 12 – 40mm
Opt. appl. range concrete, hammer drill bits: 18 – 32mm
Drilling dia. concrete, breakthrough drill bits: 45 – 55mm

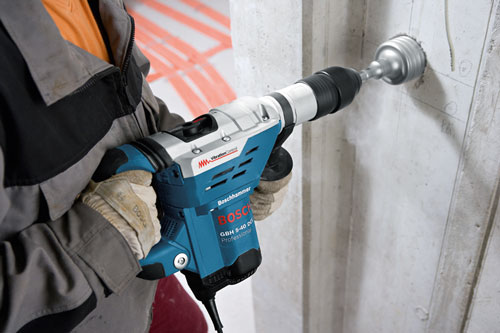

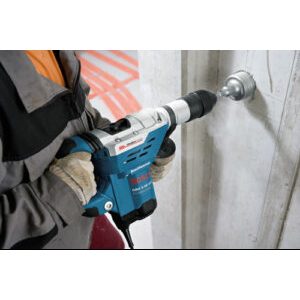

Drilling diameter in concrete with core cutters: 40 – 90mm


Noise/vibration information:

Noise level:

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.

Hammer drilling in concrete:

Vibration emission value ah: 10.5 m/s²
Uncertainty K: 1.5 m/s²

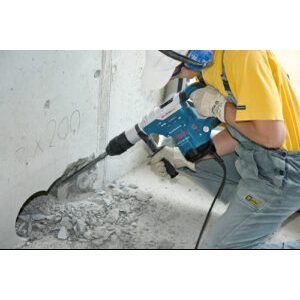

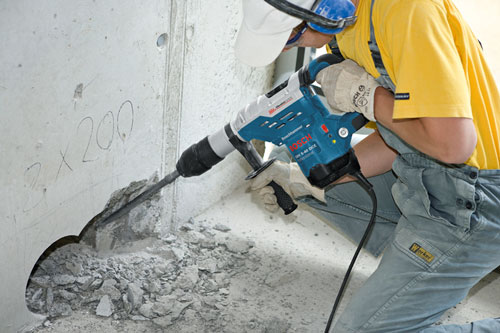

Chiselling:

Vibration emission value ah: 7.5 m/s²
Uncertainty K: 1.5 m/s²

GBH 5-40 DCE Professional comes complete with:

  • Machine cloth
  • Carrying case
  • Auxiliary handle (2602025117)
  • Grease tube (SP no. 1615430010)
