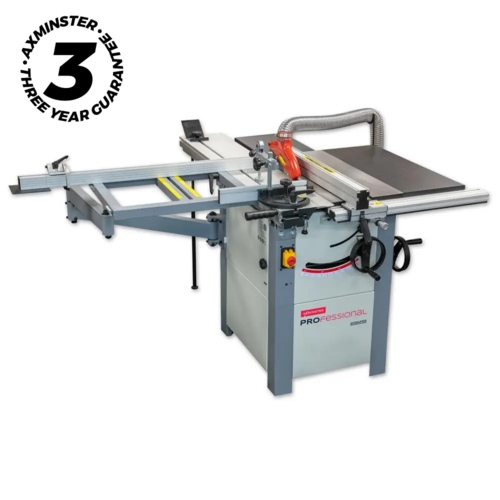

Axminster Professional Panel Saw, 230V (AP254PS13) | 025107715

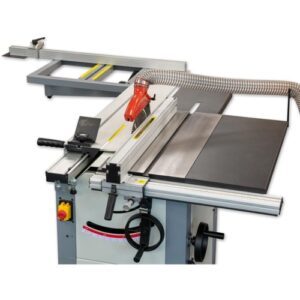

The Axminster Professional Panel Saw (AP254PS13) is a compact and versatile tool, designed to meet the demands of professional workshops. Featuring a durable construction of cast iron and heavy-gauge steel, it ensures exceptional strength and vibration-free operation for precise cutting tasks.

Equipped with a 1,300mm sliding table, this panel saw allows for smooth, accurate cuts with a travel distance of 1,250mm past the blade. The telescopic work support fence extends to 1,850mm, offering enhanced flexibility for larger workpieces, and it can be easily removed without tools for convenient storage.

Powered by a robust 2.2kW induction motor, the 254mm Axcaliber TCT blade delivers a cutting depth of up to 80mm. The rip fence includes micro-positioning adjustment for precision, while the blade height and tilt controls are conveniently placed for effortless operation. Efficient dust extraction and smooth blade controls ensure a clean and user-friendly experience.

This panel saw comes with a 254mm TCT fine-cut blade, a rear feed-off table, and sturdy table support legs, making it a comprehensive solution for medium-duty cutting needs.

Features & Benefits:

• Compact and Durable Construction: Made from cast iron and heavy-gauge steel for vibration-free performance.

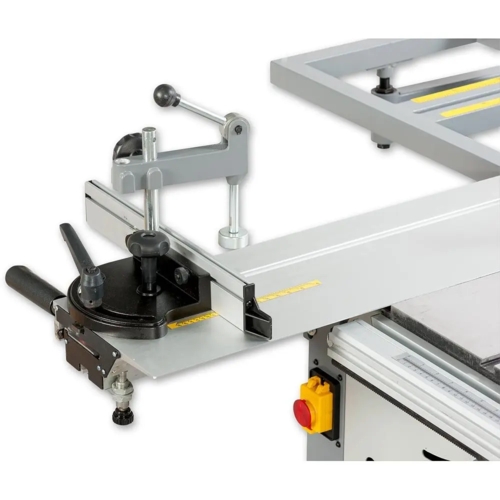

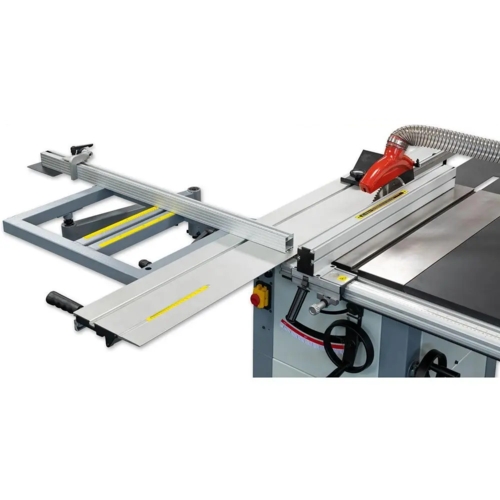

• Sliding Table: 1,300mm table with 1,250mm travel for smooth, precise cuts.

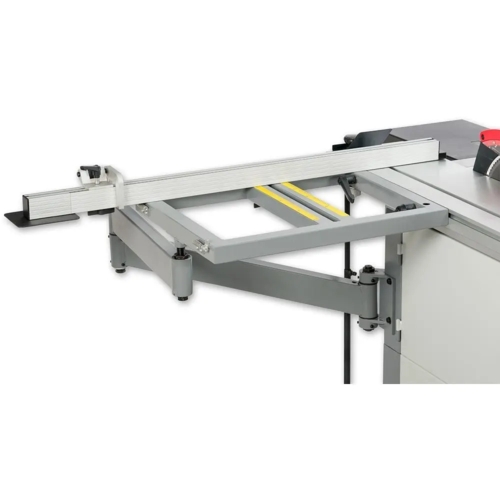

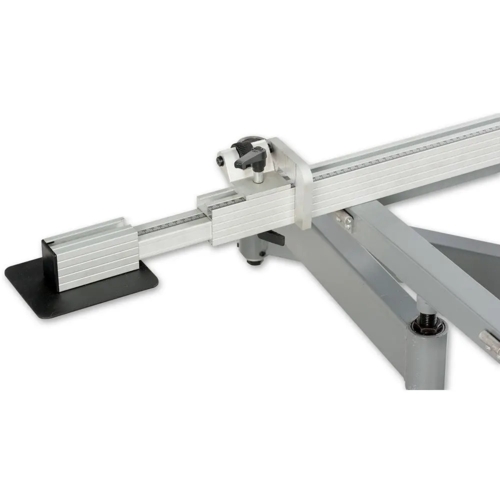

• Telescopic Work Support Fence: Extends to 1,850mm for handling larger workpieces and is easily removable without tools.
• Powerful Motor: High-torque 2.2kW induction motor for consistent and reliable performance.
• Precise Cutting Capability: 254mm blade with up to 80mm depth of cut at 90° and 60mm at 45°.

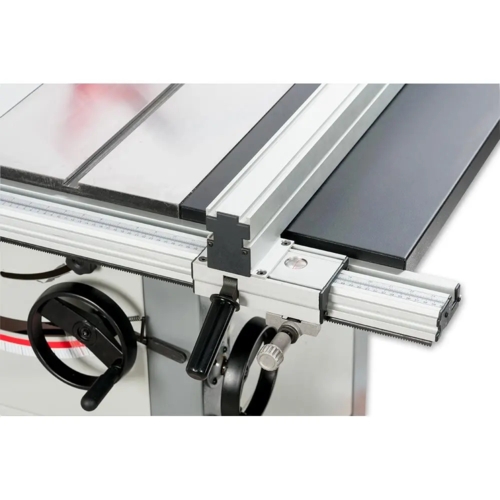

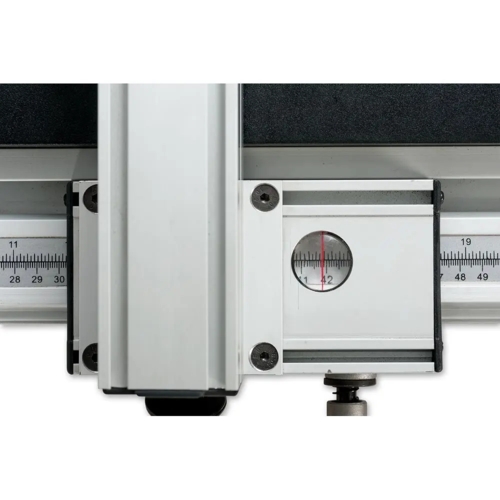

• Adjustable Rip Fence: Includes micro-positioning for greater accuracy during cutting.
• Convenient Controls: Blade height and tilt controls are easily accessible and lock in place.

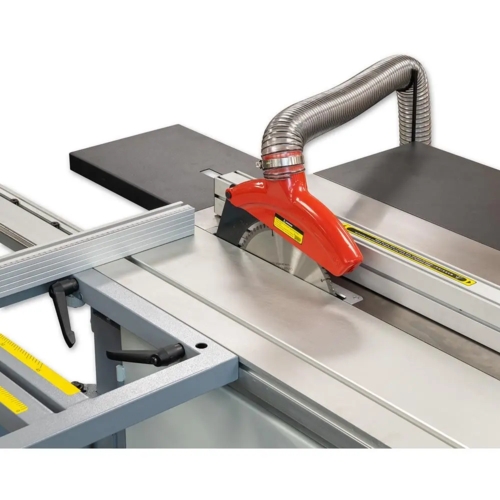

• Efficient Dust Extraction: Helps maintain a clean workspace and improves cutting visibility.

Specifications:

Blade Diameter: 254mm
Blade RPM: 3,500rpm
Blade Tilt: 0° to 45°
Bore Size: 30mm
Dust Extraction Outlet: 100mm
Max Depth of Cut at 45°: 60mm
Max Depth of Cut at 90°: 80mm
Max Ripping Width: 600mm
Max Width of Cut with Fence: 600mm
Minimum Extraction Airflow Required: 850m³/hr
Nett Weight: 155kg
Overall Dimensions (L x W x H): 3,210mm x 3,720mm x 1,120mm
Plug Fitted: UK 16A Plug
Power: 2.2kW
Rating: Trade/Professional
Sliding Table Dimensions: 1,300mm x 270mm
Sliding Table Stroke: 1,250mm
Sound Power Level LwA [Uncertainty K]: 102dB(A) [2.0dB]
Sound Pressure Level LpA [Uncertainty K]: 89dB(A) [2.0dB]
T Slot Size: 19mm x 9.5mm (3/4″ x 3/8″)
Table Height: 865mm
Table Size: Main 760mm x 350mm, Side Ext 760mm x 300mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Professional Panel Saw (AP254PS13)
• 1 x 254mm Axcaliber TCT Fine-Cut Blade
• 1 x Rear Feed-Off Table
• 2 x Table Support Legs

N.B. This Machine requires a 16amp supply and it’s recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician.
