Description

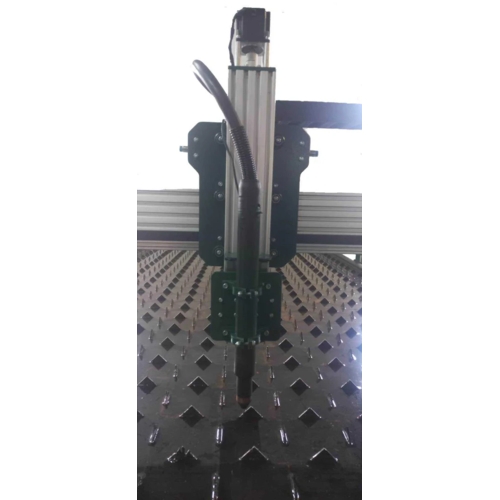

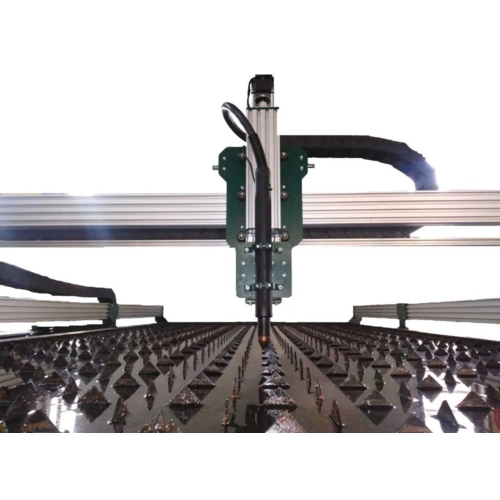

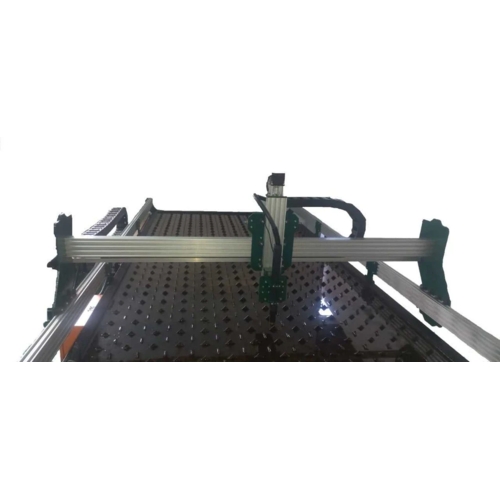

Ball Screw Plasma CNC Machines with MASSO Controllers.

Machine Specifications:

a New line of next generation CNC Plasma Cutters that blur the line between hobby and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. This machine is perfect for cutting steel, stainless steel, aluminium, brass and copper. cooled spindle kits, you are in the front seat to get your ideal CNC Machine built to your requirements.

CNC Machine Features:

• Maximum cutting depth 12mm.
• Open ends allow pass through of longer materials.
• All aluminium frame.
• Electronics controller box with USB cable connection (cable included)

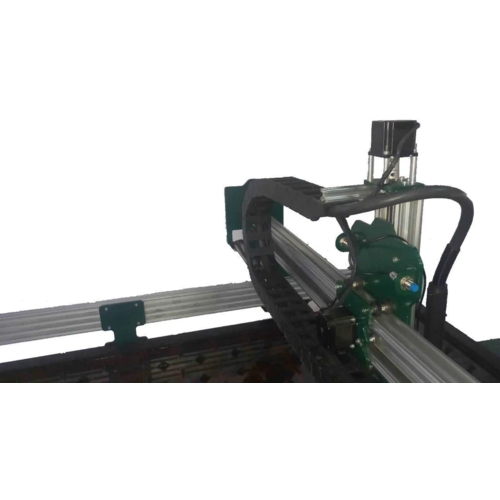

• Full HGR15 linear rail management with SFU20 ball screws for X & Y axis with cable drag chains
• Lead screw and HGR15 linear rail management for Z axis
• 7 Limit Switches (X+, X-, Y+, Y-, Z+)
• Torch Height Controller
• Square Tubing Table painted black
• Water Table With Water Outlet
• Floating Z-Probe
• Hypertherm 45XP Plasma Cutter with straight torch 7m Lead
• Masso Controller License included
• The machine comes standard with a plasma cutting table.
• The machine comes with a Free 200L Mac Afric Drive Belt Compressor.

Machine Footprint & Work Area:

1.5M x 3.0M *Footprint | *Work Area: 1500mm x 3000mm | 1200mm x 2700mm x 50mm
2.0M x 3.0M *Footprint | *Work Area: 2000mm x 3000mm | 1700mm x 2700mm x 50mm

*Footprint: At the base, stock size measured from the base.
*Work Area: Stock size.

Requirements:

• Personal computer or Laptop running Windows 7, 8, 10 or 11.
• USB port on computer
• Free Downloadable Software & License Included

Mechanical Specifications:

• 3x Name 34 stepper motors 30kg.cm
• 1x Nema 23 stepper motors 30kg.cm
• 4 Axis Stepper Motor Driver Controller Board
• 12V 100W Power Supply
• Full HGR15 linear rail management with SFU20 ball screws for X & Y axis with cable drag chains
• Lead screw and HGR15 linear rail management for Z axis
• Dual motors on Y axis
• T8 lead screw on Z axis
• Configured resolution: 0.3mm

Technical Data of Hypertherm 45XP:

• Duty Cycle: @ 50% @ 45 A, 200 – 240 V, 1-PH
• 60% @ 41 A, 200 – 240 V, 1-PH
• 100% @ 32 A, 200 – 240 V, 1-PH
• Output Current Range (A) Plasma: 10-45Amps
• Rate input current (A): 39A
• Efficiency (%): 88
• Clean Cutting Thickness: (12mm)

Free 200L Mac Afric Compressor:

• Motor Power: 2.2KW / 3 HP
• Motor/Pump Type: Belt Drive
• Tank Size: 200 Liters
• Clan Air Delivery Rate: 8.83 CFM (250 Liters/min)
• Input Power: 230V Single Phase
• Maximum Pressure: 116 PSI, 8 Bar

MASSO G3 Features:

Training & Delivery:

• Compulsory delivery, setup and minimal training of the machine at additional costs to the customer – within South Africa only.
• Delivery Time For Gauteng And Surrounding Provinces 3-5 Weeks Lead Time
• Delivery Time For Northern, Eastern & Western Cape 5-8 Weeks Lead Time

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
