Description

Axminster Professional Table Saw + Sliding Table, 2.5kW (AP254SB) | 025108516ST.

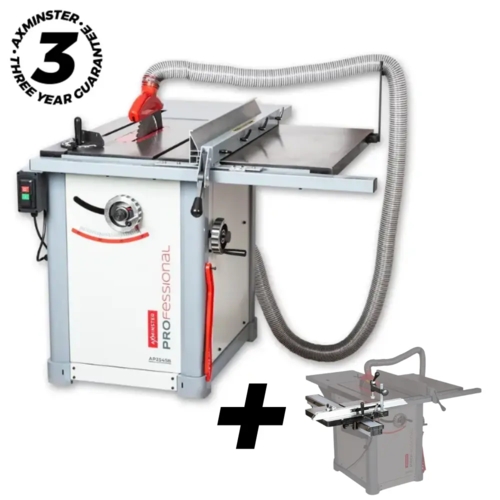

The Axminster Professional Table Saw + Sliding Table (AP254SB) is designed for professional woodworking, combining exceptional precision, power, and versatility. With its robust 2.5kW induction motor, fine-ground cast iron table, and integrated sliding table, this saw bench ensures smooth operation and accurate results. The sliding table extends the cutting capacity, making it ideal for handling larger workpieces.

Featuring a dual-height rip fence, mitre gauge with pre-set angle stops, and twin T-slot grooves, the AP254SB offers enhanced functionality for a variety of cutting applications. The addition of dual dust extraction ports ensures a cleaner workspace and a clear cutting line. This model also includes right-hand and rear extension tables, increasing the cutting width to 695mm for more extensive projects.

Supplied with an Axcaliber TCT general-purpose blade and backed by Axminster’s 3-year guarantee, the AP254SB is built to meet the demands of busy workshops, delivering reliable performance for years to come.

Features & Benefits:

• Enhanced Cutting Capacity: The integrated sliding table extends the saw’s functionality, enabling precise handling of larger workpieces.
• Robust Cast Iron Construction: Fine-ground cast iron tables provide stability, reduced vibration, and long-lasting durability.
• Independent Trunnion Mounting: The trunnion assembly is independently mounted to the frame, ensuring the table remains flat and true over time.
• Powerful 2.5kW Motor: The quiet and reliable induction motor maintains consistent blade speed for professional-grade cutting.

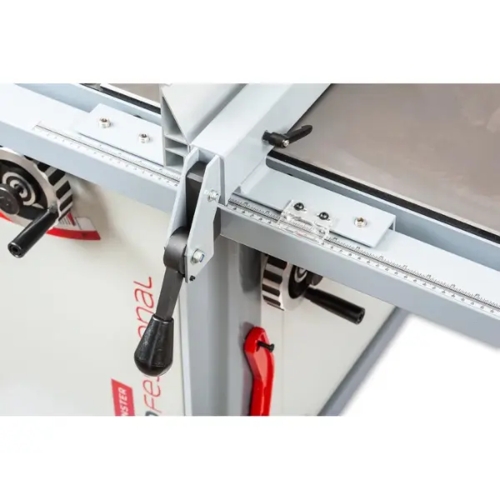

• Versatile Rip Fence: The dual-height, solid “T” style rip fence allows for close-to-blade and heavy-duty ripping with precision.
• Sliding Table Included: Increases versatility and accuracy, perfect for large panels or intricate cuts.
• Twin Mitre Fence Slots: Dual T-slot grooves on both sides of the blade, ideal for jigs and custom setups.

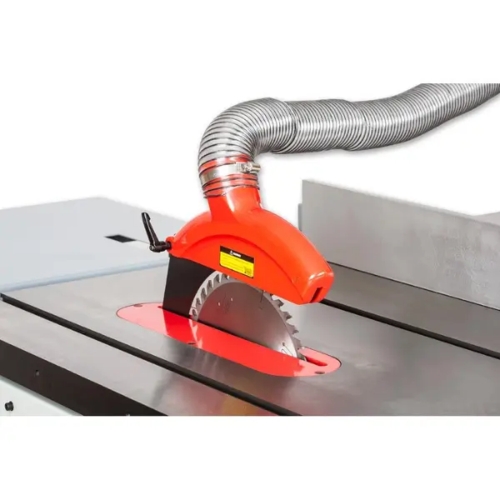

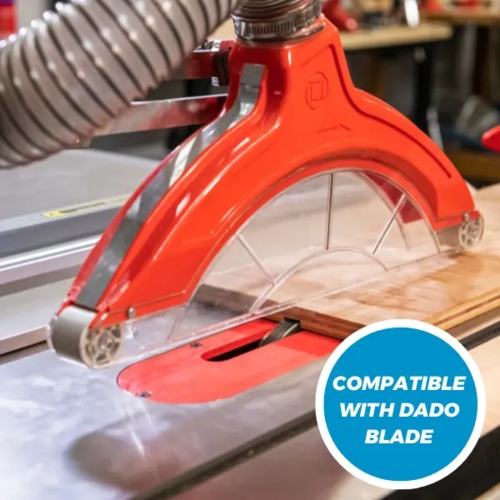

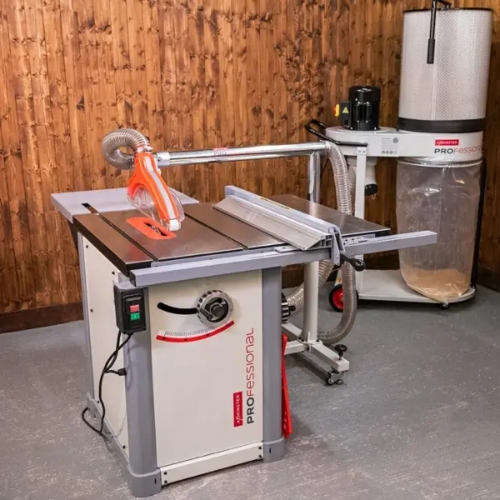

• Effective Dust Extraction: Features a 63mm blade guard connection and a 100mm rear outlet for efficient debris removal.
• Heavy-Duty Handwheels: Smooth metal handwheels for precise blade height and tilt adjustments.
• Right-Hand & Rear Extensions: Extend the maximum cutting width to 695mm, accommodating larger materials.

Specifications:

Blade Diameter: 254mm
Blade RPM: 4,000rpm
Blade Tilt: 0° to 45°
Bore Size: 30mm
Dust Extraction Outlet: 100mm & 63mm
Max Depth of Cut @ 45°: 56mm
Max Depth of Cut @ 90°: 80mm
Max Width of Cut with Fence: 695mm with R/H extension
Minimum Extraction Airflow Required: 1,000m³/hr
Nett Weight: 175kg
Overall Dimensions (L x W x H): 1,610mm x 1,210mm x 1,125mm
Power: 2.5kW
Rating: Trade/Professional
Sound Power Level LwA [Uncertainty K]: 97.4dB(A) [3.0dB]
Sound Pressure Level LpA [Uncertainty K]: 80.5dB(A) [3.0dB]
Spindle Diameter: 5/8″ (15.87mm)
Table Height: 850mm
Table Size: 580mm x 800mm
Voltage: 230V

Scope of Delivery:

• 1 x Axminster Professional Table Saw + Sliding Table (AP254SB)
• 1 x Axcaliber TCT General-Purpose Blade
• 1 x Sliding Table Attachment
• 1 x Rear Extension Table
• 1 x Right-Hand Extension Table

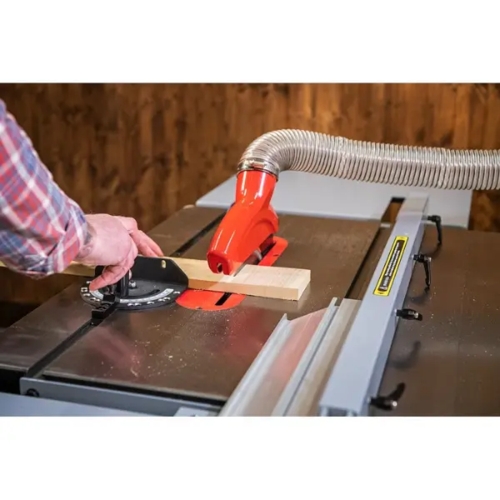

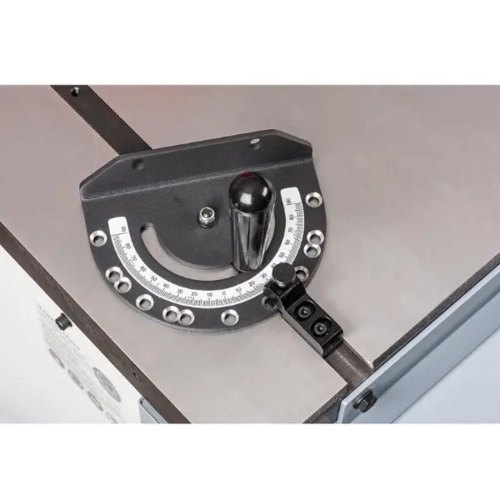

• 1 x Premium Mitre Gauge with Pre-Set Angle Stops

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
